This document outlines the differences between the old and new API formats for requests, custom modules, custom associations, and CI relationships.
The new API format will be applicable for customers who have upgraded to build 15200 of ServiceDesk Plus. We recommend using the new formats for all new integrations.
Key Changes in API Format
- The UDF holder fields, such as cm_fields and udf_fields, are removed from custom module, custom association, and CI relationship APIs.
- Backward compatibility is supported for custom module and CI relationship APIs.
- Naming conventions for additional fields have been standardized:
- Default Modules:
- This update applies to the following modules: User, Technician, CMDB, Release, Project, Worklog, Task, Space, Facility, Vendor, CI Type Association, Asset, Support Groups, and Department.
- API field names now follow the format udf_<user input>.
-
Old Format
New Format
udf_<field_type>_<user_input> (Example: udf_date_date_of_birth)
or,
<field_type>_<user_input> (Example: date_date_of_birth)
udf_<user input> (Example: udf_date_of_birth)
- Custom Modules and Custom Associations:
- Default Modules:
- API field names are now fully user-defined and do not include the udf_ prefix. (Example: date_of_birth). This update applies only to fields created after the migration.
- Fields created before the migration will remain unchanged and retain their current behavior.
Custom Module API
|
Method |
URL |
Old Format |
New Format |
|
POST / PUT |
/api/v3/cm_test /api/v3/cm_test/<ID> |
input_data { "cm_test": { "title": "test", "description": "desc", "cm_fields": { "sline_test": "sample", "per_percentage": "10" } } } |
input_data { "cm_test": { "title": "test", "description": "desc", "test": "sample", "percentage": "10" } } |
|
GET |
/api/v3/cm_test/<ID> |
Sample Response: { "response_status": { "status_code": 2000, "status": "success" }, "cm_test": { "created_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "updated_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "cm_fields": { "sline_test": "test", "per_percentage": "10.00" }, "is_trashed": false, "description": null, "id": "602", "title": "test", "created_by": { "email_id": "demo@zylker.com", "phone": "987654321", "name": "Howard Stern", "mobile": "987654321", "profile_pic": { "content-url": "/images/default-profile-pic2.svg" }, "is_vipuser": false, "id": "10", "department": { "site": null, "deleted": false, "name": "Engineering", "id": "2" } } } } |
Sample Response: { "response_status": { "status_code": 2000, "status": "success" }, "cm_test": { "created_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "updated_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "test": "test", "percentage": "10.00" "is_trashed": false, "description": null, "id": "602", "title": "test", "created_by": { "email_id": "demo@zylker.com", "phone": "987654321", "name": "Howard Stern", "mobile": "987654321", "profile_pic": { "content-url": "/images/default-profile-pic2.svg" }, "is_vipuser": false, "id": "10", "department": { "site": null, "deleted": false, "name": "Engineering", "id": "2" } } } } |
|
GET_ALL |
/api/v3/cm_test |
input_data { "list_info": { "row_count": "10", "start_index": 1, "get_total_count": true, "search_criteria": { "field": "cm_fields.sline_test", "value": "test", "condition": "contains", "logical_operator": "AND" }, "sort_field": "cm_fields.sline_test", "sort_order": "asc", "fields_required":["cm_fields.sline_test"] } } Sample Response: { "response_status": [ { "status_code": 2000, "status": "success" } ], "list_info": { "has_more_rows": false, "start_index": 1, "sort_field": "cm_fields.sline_test", "total_count": 1, "page": 1, "sort_order": "asc", "search_criteria": { "condition": "contains", "field": "cm_fields.sline_test", "logical_operator": "AND", "value": "test" }, "get_total_count": "true", "row_count": 1 }, "cm_test": [ { "created_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "updated_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "cm_fields": { "sline_test": "test", "per_percentage": "10.00" }, "is_trashed": false, "description": null, "id": "602", "title": "test", "created_by": { "email_id": "demo@zylker.com", "phone": "987654321", "name": "Howard Stern", "mobile": "987654321", "profile_pic": { "content-url": "/images/default-profile-pic2.svg" }, "is_vipuser": false, "id": "10", "department": { "site": null, "deleted": false, "name": "Engineering", "id": "2" } } } ] } |
input_data { "list_info": { "row_count": "10", "start_index": 1, "get_total_count": true, "search_criteria": { "field": "test", "value": "test", "condition": "contains", "logical_operator": "AND" }, "sort_field": "test", "sort_order": "asc", "fields_required":["test"] } } Sample Response: { "response_status": [ { "status_code": 2000, "status": "success" } ], "list_info": { "has_more_rows": false, "start_index": 1, "sort_field": "test", "total_count": 1, "page": 1, "sort_order": "asc", "search_criteria": { "condition": "contains", "field": "test", "logical_operator": "AND", "value": "test" }, "get_total_count": "true", "row_count": 1 }, "cm_test": [ { "created_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "updated_time": { "display_value": "25/08/2025 05:32 PM", "value": "1756123347308" }, "test": "test", "percentage": "10.00, "is_trashed": false, "description": null, "id": "602", "title": "test", "created_by": { "email_id": "demo@zylker.com", "phone": "987654321", "name": "Howard Stern", "mobile": "987654321", "profile_pic": { "content-url": "/images/default-profile-pic2.svg" }, "is_vipuser": false, "id": "10", "department": { "site": null, "deleted": false, "name": "Engineering", "id": "2" } } } ] } |
CI Relationship API
|
Method |
URL |
Old Format |
New Format |
|
POST |
/api/v3/cmdb_apache_instance/1/assoc_apache_connected_to_windows_workstations |
input_data: { "assoc_apache_connected_to_windows_workstations": [ { "destination": { "id": "2" }, "udf_fields": { "udf_source_no": "001", "udf_technician": { "id": "5" } } } ] } |
input_data: { "assoc_apache_connected_to_windows_workstations": [ { "destination": { "id": "2" }, "udf_source_no": "001", "udf_technician": { "id": "5" } } ] } |
|
GET_ALL |
/api/v3/cmdb_apache_instance/1/assoc_apache_connected_to_windows_workstations |
Sample Response: { "response_status": [ { "status_code": 2000, "status": "success" } ], "assoc_apache_connected_to_windows_workstations": [ { "udf_fields": { "udf_source_no": "001", "udf_technician": { "email_id": null, "phone": "1234455", "name": "administrator", "mobile": "1234567890", "profile_pic": { "content-url": "/images/default-profile-pic2.svg" }, "is_vipuser": false, "id": "5", "department": null } }, "destination": { "site": null, "inactive": false, "module": { "id": "190" }, "name": "windows workstation", "id": "2", "entity": { "api_plural_name": "cmdb_windows_workstation", "name": "cmdb_windows_workstation", "icon": { "id": "410" }, "id": "190", "display_name": "Windows Workstation", "display_plural_name": "Windows Workstation", "category": { "id": "18" } }, "status": null }, "id": "2", "association_type": { "name": "Connected to", "id": 3 } } ], "list_info": { "has_more_rows": false, "start_index": 1, "row_count": 1 } } |
Sample Response: { "response_status": [ { "status_code": 2000, "status": "success" } ], "assoc_apache_connected_to_windows_workstations": [ { "udf_source_no": "001", "udf_technician": { "email_id": null, "phone": "1234455", "name": "administrator", "mobile": "1234567890", "profile_pic": { "content-url": "/images/default-profile-pic2.svg" }, "is_vipuser": false, "id": "5", "department": null }, "destination": { "site": null, "inactive": false, "module": { "id": "190" }, "name": "windows workstation", "id": "2", "entity": { "api_plural_name": "cmdb_windows_workstation", "name": "cmdb_windows_workstation", "icon": { "id": "410" }, "id": "190", "display_name": "Windows Workstation", "display_plural_name": "Windows Workstation", "category": { "id": "18" } }, "status": null }, "id": "2", "association_type": { "name": "Connected to", "id": 3 } } ], "list_info": { "has_more_rows": false, "start_index": 1, "row_count": 1 } } |
Backward Compatibility Changes
During migration, the API names of existing custom modules ("web_tab","configuration","hidden","association",and "published") and CI relationships are set to the paramvalue attribute in GlobalConfig.

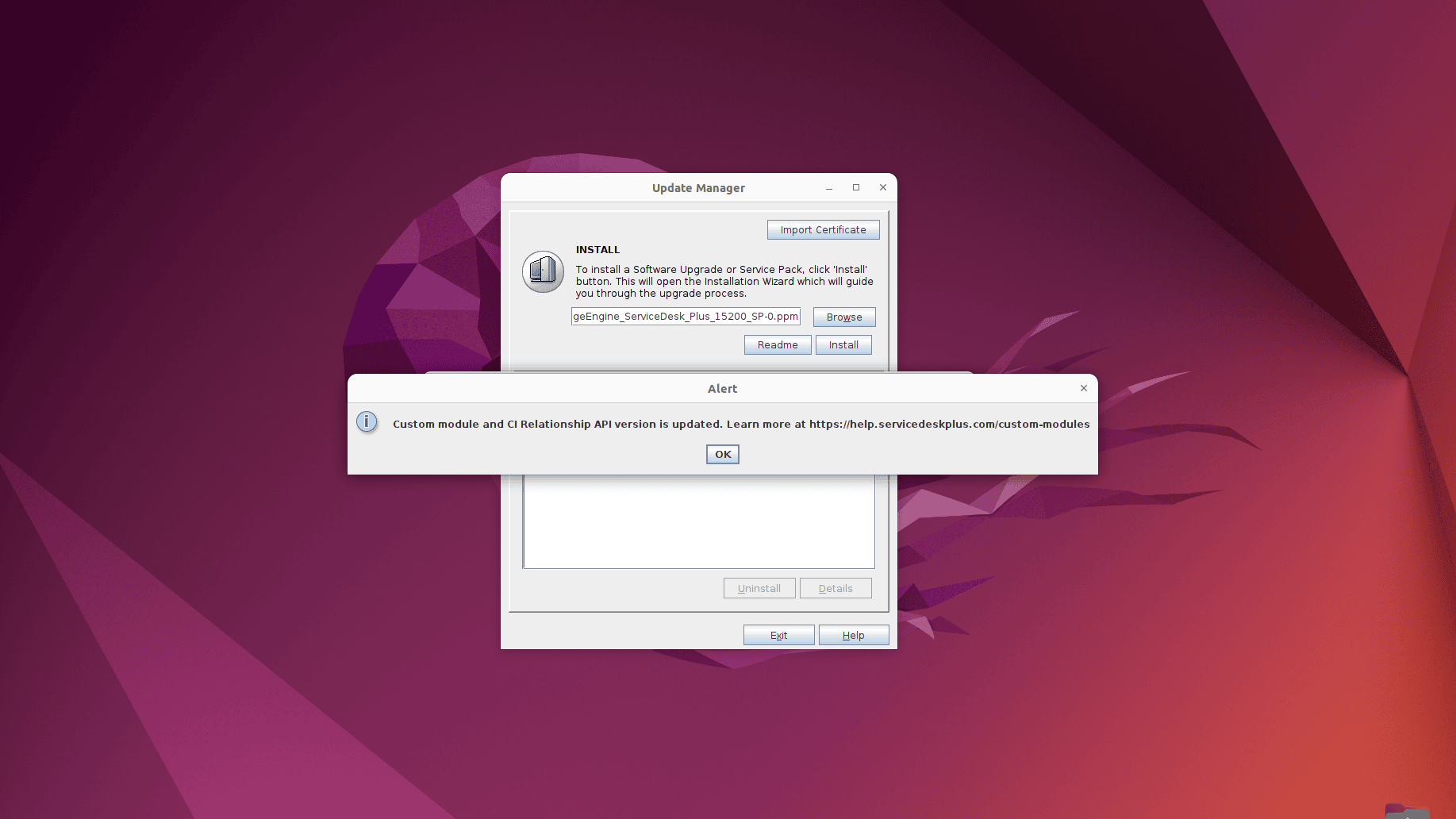

A warning message will be displayed during migration, as shown:

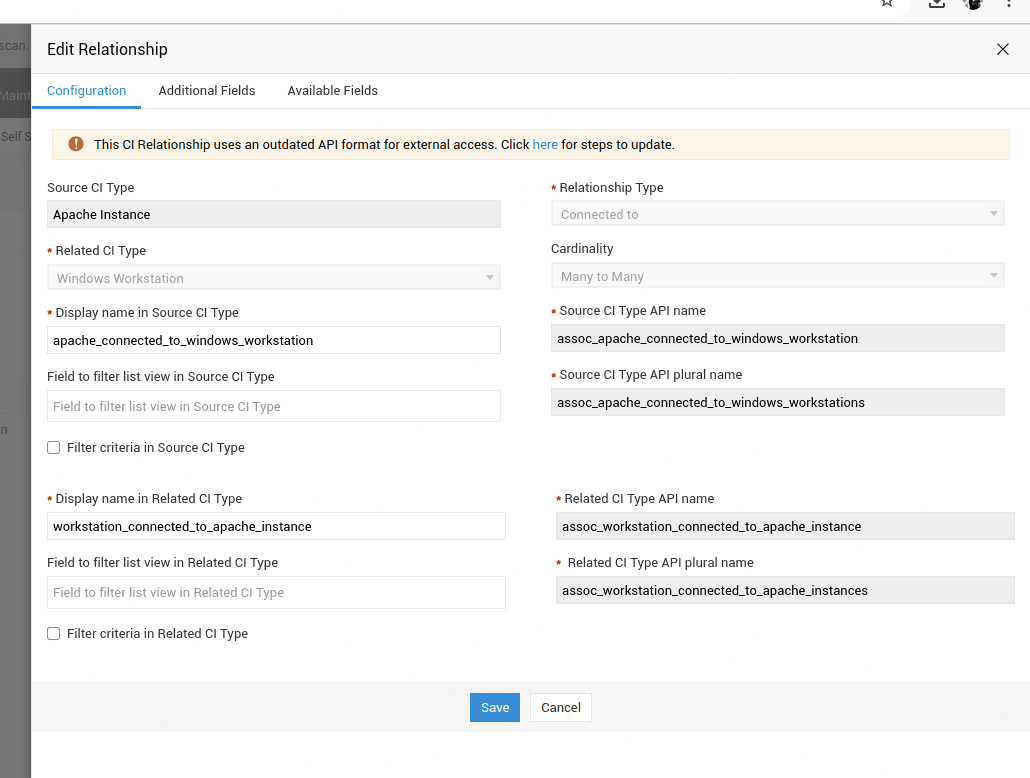

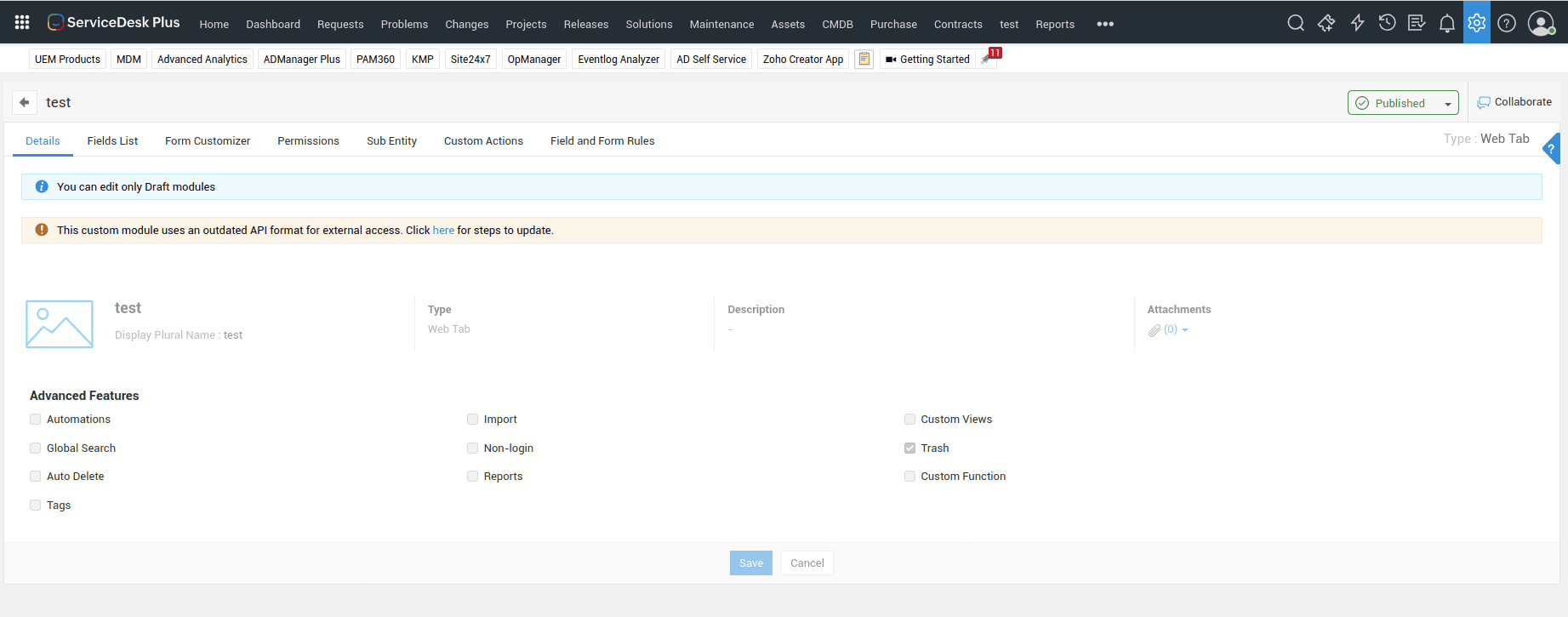

After migration, a warning message will be displayed on the details page of custom modules and CI relationships for which backward compatibility is provided.
Custom Modules
CI Relationships
Managing Backward Compatibility
To add or remove modules from backward compatibility support, use the following query:
Requests API Format Changes
This document outlines the differences between the old and new API formats for mandatory fields, transitions, connected states, approval levels, checklists, and operational hours APIs.
The new API format will be applicable for customers who have upgraded to build 15200.
Workflow Enhancements
Mandatory fields API
|
|
Old Format |
New Format |
|
URL |
1. api/v3/requests/status_mandatory_fields |
1. api/v3/requests/get_mandatory_fields |
|
Input Data |
{"template_id":5, "status_id":2} |
{"template_id":"1","state_id":"2"} |
|
Response |
{ "status_mandatory_fields": { "checklists": [], "to_be_filled": [ "level", "item" ], "depends_on_requests": [], "optional_fields": [], "fields": [ "level", "item", "tasks" ], "tasks": [] } } |
{ "mandatory_fields": { "to_be_filled": [ "impact", "level" ], "optional_fields": [], "fields": [ "impact", "level" ] } } |
Note: The checklists, tasks, depends_on_requests fields appear in the response only when they are marked as mandatory.
Get transitions API
|
|
Old Format |
New Format |
|
URL |
api/v3/requests/id/_get_transitions |
api/v3/requests/id/_get_transitions |
|
Response |
{ "response_status": [ { "status_code": 2000, "status": "success" } ], "transitions": [ { "source_node": { "color": "#0066ff", "ui_attributes": { "position": { "x": 638, "y": 180 } }, "name": "Open", "id": "1", "entity_id": "2", "entity": "Status" }, "name": "Assign", "id": 4, "pre_rule_satisfied": true, "target_node": { "color": "#006699", "ui_attributes": { "position": { "x": 638, "y": 308 } }, "name": "Assigned", "id": "8", "entity_id": "5", "entity": "Status" }, "help_text": null }, { "source_node": { "color": "#0066ff", "ui_attributes": { "position": { "x": 638, "y": 180 } }, "name": "Open", "id": "1", "entity_id": "2", "entity": "Status" }, "name": "Hold", "id": 3, "pre_rule_satisfied": true, "target_node": { "color": "#ff0000", "ui_attributes": { "position": { "x": 430, "y": 308 } }, "name": "Onhold", "id": "2", "entity_id": "3", "entity": "Status" }, "help_text": null } ] } |
{ "response_status": [ { "status_code": 2000, "status": "success" } ], "transitions": [ { "name": "approval", "id": 630, "target_node": { "name": "Resolved", "id": 5, "entity_id": 4, "entity": "status" }, "help_text": null }, { "name": "hold", "id": 906, "target_node": { "name": "Onhold", "id": 904, "entity_id": 3, "entity": "status" }, "help_text": null } ] } |
Get connected statuses API
|
|
Old Format |
New Format |
|
URL |
api/v3/requests/id/_get_connected_statuses |
api/v3/requests/id/_get_connected_states |
|
Input Data |
{ "status_id": 3, "nodes_list_info": { "row_count": 100, "search_criteria": [ { "field": "in_progress", "value": true, "condition": "is" }, { "field": "stop_timer", "value": false, "condition": "is", "logical_operator": "and" } ] } } |
{ "state_id": 3, "nodes_list_info": { "row_count": 100, "search_criteria": [ { "field": "in_progress", "value": true, "condition": "is" }, { "field": "stop_timer", "value": false, "condition": "is", "logical_operator": "and" } ] } } |
|
Response |
{ "response_status": [ { "status_code": 2000, "status": "success" } ], "statuses": [ { "in_progress": true, "deleted": false, "internal_name": "Open", "prominent": true, "stop_timer": false, "color": "#0066ff", "name": "Open", "id": "2" }, { "in_progress": true, "deleted": false, "internal_name": "In Progress", "prominent": true, "stop_timer": false, "color": "#00ffcc", "name": "In Progress", "id": "6" } ] } |
{ "response_status": [ { "status_code": 2000, "status": "success" } ], "status": [ { "in_progress": true, "deleted": false, "internal_name": "Open", "stop_timer": false, "color": "#0066ff", "name": "Open", "description": "Request Pending", "id": "2" }, { "in_progress": true, "deleted": false, "internal_name": "Assigned", "stop_timer": false, "color": "#006699", "name": "Assigned", "description": "Request Assigned to the technician, waiting for technician action", "id": "5" } ] } |
Get connected nodes API
|
|
Old Format |
New Format |
|
URL |
api/v3/request_lifecycles/<lifecycleid>/get_connected_nodes |
/api/v3/request_workflows/<workflowid>/get_connected_nodes |
|
Input Data |
{"node_entity_id":0,"module":{"name":"request"}} |
{"state_id":0,"module":{"name":"request"}} |
|
Response |
{ "response_status": [ { "status_code": 2000, "status": "success" } ], "statuses": [ { "in_progress": true, "deleted": false, "internal_name": "Open", "prominent": true, "stop_timer": false, "color": "#0066ff", "name": "Open", "id": "2"
] } |
{ "response_status": [ { "status_code": 2000, "status": "success" } ], "status": [ { "in_progress": true, "deleted": false, "internal_name": "Open", "stop_timer": false, "color": "#0066ff", "name": "Open", "description": "Request Pending", "id": "2" } ] } |
Approval Level Response
The rule.value field in the request approval level response uses the updated values as shown below:
|
Old Value |
New Value |
|
anyone |
anyone_approves |
|
all |
everyone_approves |
|
first_response |
first_response_action |
|
|
Old Format |
New Format |
|
URL |
GET - /requests/{id}/approval_level/{id} |
GET - /requests/{id}/approval_level/{id} |
|
RESPONSE |
{ "request": { "subject": "zxc", "id": "24" }, "comments": "Level approved in accordance with approval rule.", "level": 1, "associated_entity": "request", "action_taken_by": { "email_id": null, "phone": null, "name": "System", "mobile": null, "profile_pic": null, "is_vipuser": false, "id": "1", "department": null }, "rule": { "type": "template_configurations", "value": "anyone" }, "created_by": { "email_id": null, "phone": null, "name": "System", "mobile": null, "profile_pic": null, "is_vipuser": false, "id": "1", "department": null }, "deleted": false, "created_on": { "display_value": "Feb 11, 2025 04:39 PM", "value": "1739272164893" }, "name": "Guest Level", "id": "304", "status": { "name": "Approved", "id": "2" }, "action_taken_on": { "display_value": "Feb 11, 2025 04:39 PM", "value": "1739272178778" } } |
{ "request": { "subject": "zxc", "id": "24" }, "comments": "Level approved in accordance with approval rule.", "level": 1, "associated_entity": "request", "action_taken_by": { "email_id": null, "phone": null, "name": "System", "mobile": null, "profile_pic": null, "is_vipuser": false, "id": "1", "department": null }, "rule": { "type": "template_configurations", "value": "anyone_approves" }, "created_by": { "email_id": null, "phone": null, "name": "System", "mobile": null, "profile_pic": null, "is_vipuser": false, "id": "1", "department": null }, "deleted": false, "created_on": { "display_value": "Feb 11, 2025 04:39 PM", "value": "1739272164893" }, "name": "Guest Level", "id": "304", "status": { "name": "Approved", "id": "2" }, "action_taken_on": { "display_value": "Feb 11, 2025 04:39 PM", "value": "1739272178778" } } |
Operational hours API
Entity level key differences
|
Old Key |
New Key |
Remarks |
|
site |
associated_sites |
Site details are changed to array format. |
|
days_of_operation |
days |
|
|
hours_of_operation |
hours |
|
|
site_type |
(removed) |
The site type is selected based on the global hours value. |
|
day_type |
(removed) |
The day type is selected based on is_standard key |
|
exclude_weeks |
exception_rules |
exclude_weeks is removed from day object and a new key is placed outside. |
Response differences
Use the legend below to understand the color codes used in the table:
Red - Removed keys
Yellow - Modified keys
Green - Newly added keys
|
|
OLD FORMAT |
NEW FORMAT |
|
URL |
/operational_hours/<id> |
/operational_hours/<id> |
|
RESPONSE |
{ "response_status": { "status_code": 2000, "status": "success" }, "operational_hour": { "days_of_operation": [ { "day_type": "custom", "hours_of_operation": { "start_time": { "hours": 10, "minutes": 0 }, "break_start_time": { "hours": 12, "minutes": 0 }, "end_time": { "hours": 23, "minutes": 0 }, "break_end_time": { "hours": 13, "minutes": 0 } }, "exclude_weeks": null, "is_working": true, "week_day": "MONDAY", "id": "315" }, { "day_type": "standard", "hours_of_operation": { "start_time": { "hours": 9, "minutes": 0 }, "break_start_time": { "hours": 0, "minutes": 0 }, "end_time": { "hours": 18, "minutes": 0 }, "break_end_time": { "hours": 0, "minutes": 0 } }, "exclude_weeks": null, "is_working": true, "week_day": "TUESDAY", "id": "316" }, { "day_type": "standard", "hours_of_operation": { "start_time": { "hours": 9, "minutes": 0 }, "break_start_time": { "hours": 0, "minutes": 0 }, "end_time": { "hours": 18, "minutes": 0 }, "break_end_time": { "hours": 0, "minutes": 0 } }, "exclude_weeks": null, "is_working": true, "week_day": "WEDNESDAY", "id": "317" }, { "day_type": "standard", "hours_of_operation": { "start_time": { "hours": 9, "minutes": 0 }, "break_start_time": { "hours": 0, "minutes": 0 }, "end_time": { "hours": 18, "minutes": 0 }, "break_end_time": { "hours": 0, "minutes": 0 } }, "exclude_weeks": null, "is_working": true, "week_day": "THURSDAY", "id": "318" }, { "day_type": "standard", "hours_of_operation": { "start_time": { "hours": 9, "minutes": 0 }, "break_start_time": { "hours": 0, "minutes": 0 }, "end_time": { "hours": 18, "minutes": 0 }, "break_end_time": { "hours": 0, "minutes": 0 } }, "exclude_weeks": null, "is_working": true, "week_day": "FRIDAY", "id": "319" }, { "exclude_weeks": null, "is_working": false, "week_day": "SUNDAY", "id": "321" }, { "exclude_weeks": null, "is_working": false, "week_day": "SATURDAY", "id": "320" } ], "site": { "id":"301" }, "hours_of_operation": { "start_time": { "hours": 9, "minutes": 0 }, "break_start_time": { "hours": 0, "minutes": 0 }, "end_time": { "hours": 18, "minutes": 0 }, "break_end_time": { "hours": 0, "minutes": 0 } }, "site_type": "standard", "id": "1" } } |
{ "response_status": { "status_code": 2000, "status": "success" }, "operational_hour": { "end_date": null, "created_time": { "display_value": "31/10/2025 16:00", "value": "1761906606174" }, "hours": { "start_minutes": "0", "end_hours": "20", "start_hours": "12", "end_minutes": "0", "break_hours": [ { "name": "Break Hours", "break_start_hours": "16", "break_end_minutes": "0", "id": "1", "break_start_minutes": "0", "break_end_hours": "17" "order": "1" } ], "id": "301", "is_standard": true }, "special_operational_hours": [], "description": "Operation Hours For Site", "created_by": { "phone": null, "name": "admin", "mobile": null,
"id": "451" }, "is_vipuser": false, "id": "26", "department": null }, "is_special": false, "is_base": false, "last_updated_by": null, "deleted": false, "associated_sites": [ { "name": "Custom Site", "id": "3" } ], "last_updated_time": null, "associated_regions": [], "associated_groups": [], "name": "Operation Hours For Site", "days": [ { "hours": { "start_minutes": "0", "end_hours": "20", "start_hours": "12", "end_minutes": "0", "break_hours": [ { "name": "Break Hours", "break_start_hours": "16", "break_end_minutes": "0", "id": "1", "break_start_minutes": "0", "break_end_hours": "17", "order": "1" } ], "id": "301", "is_standard": true }, "is_working": true, "week_day": "FRIDAY", "id": "305" }, { "hours": { "start_minutes": "0", "end_hours": "20", "start_hours": "12", "end_minutes": "0", "break_hours": [ { "name": "Break Hours", "break_start_hours": "16", "break_end_minutes": "0", "id": "1", "break_start_minutes": "0", "break_end_hours": "17", "order": "1" } ], "id": "301", "is_standard": true }, "is_working": true, "week_day": "THURSDAY", "id": "304" }, { "hours": { "start_minutes": "0", "end_hours": "20", "start_hours": "12", "end_minutes": "0", "break_hours": [ { "name": "Break Hours", "break_start_hours": "16", "break_end_minutes": "0", "id": "1", "break_start_minutes": "0", "break_end_hours": "17", "order": "1" } ], "id": "301", "is_standard": true }, "is_working": true, "week_day": "WEDNESDAY", "id": "303" }, { "hours": { "start_minutes": "0", "end_hours": "20", "start_hours": "12", "end_minutes": "0", "break_hours": [ { "name": "Break Hours", "break_start_hours": "16", "break_end_minutes": "0", "id": "1", "break_start_minutes": "0", "break_end_hours": "17", "order": "1" } ], "id": "301", "is_standard": true }, "is_working": true, "week_day": "TUESDAY", "id": "302" }, { "hours": { "start_minutes": "0", "end_hours": "20", "start_hours": "12", "end_minutes": "0", "break_hours": [ { "name": "Break Hours", "break_start_hours": "16", "break_end_minutes": "0", "id": "1", "break_start_minutes": "0", "break_end_hours": "17", "order": "1" } ], "id": "301", "is_standard": true }, "is_working": true, "week_day": "MONDAY", "id": "301" }, { "hours": null, "is_working": false, "week_day": "SUNDAY", "id": "307" }, { "hours": null, "is_working": false, "week_day": "SATURDAY", "id": "306" } ], "id": "301", "is_recurring": false, "exception_rules": [ { "hours": { "start_minutes": "0", "end_hours": "17", "start_hours": "12", "end_minutes": "0", "break_hours": [], "id": "307", "is_standard": false }, "week_day": 6, "id": "1", "week_number": "7", "start_date": { "display_value": "01.11.2025", "value": 1761935400000 } } ], "start_date": null } } |
Checklist Enhancements
Key Differences
Refer to the table below for a quick comparison of the key changes introduced with the API updates.
Use the legend below to understand the color codes used in the table:
Red - Removed keys
Yellow - Modified keys
Green - Newly added keys
|
API |
Old Endpoint |
New Endpoint |
Old Key |
New Key |
|
Get, Add, Update(Radio Field, Boolean field, Numeric field, Single line field) Get All, Single Delete, Bulk Delete
|
/api/v3/additional_fields |
/api/v3/item_details |
field_id |
|
|
checklist |
|
|||
|
api_key |
|
|||
|
field_key |
|
|||
|
column_name |
|
|||
|
is_PII |
|
|||
|
module |
|
|||
|
default_value |
|
|||
|
allowed_values : [ "a", "b", "c", "d" ] |
allowed_values: [ { "name": "option1", "id": "43", "order": "1" }, { "name": "option2", "id": "44", "order": "2" } ] |
|||
|
|
deleted |
|||
|
|
"constraints": [ { "constraint_value": "1:10", "constraint_name": "num_range", "id": "23" }, { "constraint_value": "2", "constraint_name": "min_length", "id": "24" }, { "constraint_value": "10", "constraint_name": "max_length", "id": "25" } ] |
|||
|
Get Associated checklists for a Checklist Additional Field |
/api/v3/checklist_items |
api/v3/checklist_item_templates |
udf_field "id": "27", "alias_name": "Radio Field 3", "field_type": "Radio" } |
item "name": "Sample Boolean Field Updated", "description": "<div>This is a sample field updated<br /></div>", "id": "27", "field_type": "Boolean" }, " |
|
Add, Update, Get, Delete (Checklists), Bulk Delete, Get All Checklists |
/api/v3/checklists |
/api/v3/checklist_templates |
checklist "id": "2", "title": "Sample Checklist 1" } |
checklist_template "name": "Sample Checklist Updated", "description": "Sample checklist description", "id": "10" } |
|
title |
name |
|||
|
checklist_items.values |
|
|||
|
checklist_items.udf_field |
checklist_items.item |
|||
|
checklist_items.udf_field.alias_name |
checklist_items.item.name |
|||
|
templates |
|
|||
|
Add/Get/Update/Delete APIs of Request Template and Checklist Association. |
template_checklist |
template_checklist |
request_template |
template |
|
checklist.title |
checklist.name |
|||
|
Add Request operation |
/api/v3/requests |
/api/v3/requests |
|
request_template_checklist_ids "request_template_checklist_ids":[{"id":"14"},{"id":"13"},{"id":"10"}] |
|
Add/Delete/Get APIs of Request-Checklist Association |
/api/v3/requests/<id>/checklists |
api/v3/request_templates/<id>/checklists |
checklist_items |
|
|
title |
name |
|||
|
status |
status "internal_name": "Not Verified", "color": "#ff0000", "name": "Not Verified", "id": "2" } |
|||
|
text_value |
cl_value |
|||
|
bool_value |
cl_value |
|||
|
long_value |
cl_value |
|||
|
options |
|
|||
|
fieldname |
item.name |
|||
|
field_type |
item.field_type |
|||
|
comments |
|
|||
|
|
is_enabled |
|||
|
|
module |
Checklist API Input format changes:
|
API |
API URL (OLD) |
API URL (NEW) |
OLD INPUT FROMAT |
NEW INPUT FROMAT |
|
Add (Radio Field) |
/api/v3/additional_fields |
/api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Radio Field ", "field_type": "radio", "allowed_values": [ { "name": "a" }, { "name": "b" }, { "name": "c" }, { "name": "d" } ] } } |
{ "item_detail": { "name": "Sample Radio Field", "field_type": "Radio", "description": "<div>This is a sample description</div>", "allowed_values": [ { "name": "option1" }, { "name": "option2" }, { "name": "option3" }, { "name": "option4" } ] } } |
|
ADD (Boolean Field) |
/api/v3/additional_fields |
/api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Boolean Field", "field_type": "boolean" } } |
{ "item_detail": { "name": "Sample Boolean Field", "field_type": "Boolean", "description": "<div>This is a sample field</div>" } } |
|
ADD (Numeric Field) |
/api/v3/additional_fields |
/api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Numeric Field", "field_type": "numeric" } } |
{ "item_detail": { "name": "Sample Numeric Field", "field_type": "Numeric", "description": "<div>This is a sample,description </div>", "constraints": [ { "constraint_name": "num_range", "constraint_value": "1:10" } ] } } |
|
ADD (Single Line Field) |
/api/v3/additional_fields |
/api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Single Line Field", "field_type": "single_line" } } |
{ "item_detail": { "name": "Sample Single Line Field", "field_type": "Single Line", "description": "<div>This is a sample description</div>", "constraints": [ { "constraint_name": "min_length", "constraint_value": "2" }, { "constraint_name": "max_length", "constraint_value": "10" } ] } } |
|
Update (Single Line Field) |
/api/v3/additional_fields |
/api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Single Line Field Updated", "field_type": "single_line" } } |
{ "item_detail": { "name": "Sample Single Line Field Updated", "field_type": "Single Line", "description": "<div>This is a sample description updated<br></div>", "constraints": [ { "constraint_name": "min_length", "constraint_value": "3" }, { "constraint_name": "max_length", "constraint_value": "11" } ] } } |
|
Update (Boolean Field) |
/api/v3/additional_fields |
/api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Boolean Field Updated ", "field_type": "boolean" } } |
{ "item_detail": { "name": "Sample Boolean Field Updated", "field_type": "Boolean", "description": "<div>This is a sample field updated<br></div>" } } |
|
Update (Radio Field) |
/api/v3/additional_fields |
/api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Radio Field Updated", "field_type": "radio", "allowed_values": [ { "name": "aa" }, { "name": "bb" }, { "name": "cc" }, { "name": "dd" } ] } } |
{ "item_detail": { "name": "Sample Radio Field Updated", "field_type": "Radio", "description": "<div>This is a sample description Updated<br></div>", "allowed_values": [ { "name": "option3" }, { "name": "option4" }, { "name": "option1 updated" }, { "name": "option 2 updated" } ] } } |
|
Update (Numeric Field) |
/api/v3/additional_fields |
api/v3/item_details |
{ "additional_fields": { "module": "checklist", "name": "Numeric Field Updated", "field_type": "numeric" } } |
{ "item_detail": { "name": "Sample Numeric Field updated", "field_type": "Numeric", "description": "<div>This is a sample description updated <br></div>", "constraints": [ { "constraint_name": "num_range", "constraint_value": "2:12" } ] } } |
|
Get (Single Line Field) |
/api/v3/additional_fields |
/api/v3/item_details |
|
|
|
Get (Radio Field) |
/api/v3/additional_fields |
/api/v3/item_details |
|
|
|
Get (Boolean Field) |
/api/v3/additional_fields |
/api/v3/item_details |
|
|
|
Get (Numeric Field) |
/api/v3/additional_fields |
/api/v3/item_details |
|
|
|
Get All |
/api/v3/additional_fields |
api/v3/item_details |
{ "list_info": { "search_fields": { "module": "checklist" } } } |
|
|
Single Delete |
/api/v3/additional_fields |
/api/v3/item_details |
|
|
|
Bulk Delete |
/api/v3/additional_fields |
/api/v3/item_details |
|
|
|
Get Associated checklists for a Checklist Additional Field |
/api/v3/checklist_items |
api/v3/checklist_item_templates |
{ "list_info": { "search_fields": { "udf_field.id": 27 } } } |
{ "list_info": { "row_count": "10", "start_index": "1", "search_criteria": { "field": "item.id", "value": "7", "condition": "eq", "logical_operator": "AND" }, "get_total_count": true } } |
|
Add Checklist |
/api/v3/checklists |
/api/v3/checklist_templates |
{ "checklist": { "title": "Sample Checklist 10", "description": "Sample Description", "checklist_items": [ { "udf_field": { "id": 27 }, "order": 1 }, { "udf_field": { "id": 28 }, "order": 2 }, { "udf_field": { "id": 29 }, "order": 3 } ] } } |
{ "checklist_template": { "name": "Sample Checklist", "checklist_items": [ { "item": { "id": "7" }, "order": 1 }, { "item": { "id": "8" }, "order": 2 }, { "item": { "id": "13" }, "order": 3 }, { "item": { "id": "10" }, "order": 4 } ] } } |
|
Update Checklist |
/api/v3/checklists |
/api/v3/checklist_templates |
{ "checklist": { "title": "Sample Checklist 1", "description": "Sample Description", "checklist_items": [ { "udf_field": { "id": 28 }, "order": 1 }, { "udf_field": { "id": 29 }, "order": 2 }, { "udf_field": { "id": 30 }, "order": 3 } ] } } |
{ "checklist_template": { "name": "Sample Checklist Updated", "description": "Sample checklist description ", "checklist_items": [ { "item": { "id": "7" }, "order": 1, "id": "5" }, { "item": { "id": "8" }, "order": 2, "id": "6" }, { "item": { "id": "13" }, "order": 3, "id": "7" }, { "item": { "id": "10" }, "order": 4, "id": "8" } ] } } |
|
Get Checklist |
/api/v3/checklists |
/api/v3/checklist_templates |
|
|
|
GET ALL CHECKLISTS |
/api/v3/checklists |
/api/v3/checklist_templates |
|
|
|
Delete Checklist |
/api/v3/checklists |
/api/v3/checklist_templates |
|
|
|
Bulk Delete Checklists |
/api/v3/checklists?<ids> |
/api/v3/checklist_templates?<ids> |
|
|
|
Get Checklist History |
/api/v3/checklists/<id>/history |
/api/v3/checklist_templates/<id>/history |
|
|
|
Get Associated Request Templates of Checklist |
/api/v3/template_checklists |
/api/v3/template_checklists |
{ "list_info": { "search_fields": { "checklist.id": 5 } } } |
{ "list_info": { "row_count": "10", "start_index": "1", "search_criteria": { "field": "checklist.id", "value": "10", "condition": "eq", "logical_operator": "AND" }, "get_total_count": true } } |
|
Associate Checklists to a Request Template |
/api/v3/request_templates/<id>/checklists |
api/v3/request_templates/<id>/checklists |
{ "checklists": [ { "checklist":{ "id":1, }, "order": 1 }, { "checklist":{ "id":2, }, "order": 2 }, { "checklist":{ "id":3, }, "order": 3 }, { "checklist":{ "id":4, }, "order": 4 }, { "checklist":{ "id":5, }, "order": 5 } ] } |
{ "checklists": [ { "checklist": { "id": "2" }, "order": 1 }, { "checklist": { "id": "6" }, "order": 2 }, { "checklist": { "id": "7" }, "order": 3 } ] } |
|
Dissociate Checklists from Request Template |
api/v3/request_templates/<id>/checklists?<ids> |
/api/v3/request_templates/<id>/checklists?<ids> |
|
|
|
Get Associated checklists of Request Template |
/api/v3/request_templates/<id>/checklists |
/api/v3/request_templates/<id>/checklists |
|
|
|
Reorder Checklists of Request Template |
/api/v3/request_templates/<id>/checklists |
/api/v3/request_templates/<id>/checklists |
{ "checklists": [ { "id":1, "order": 5 }, { "id":2, "order": 4 }, { "id":3, "order": 3 }, { "id":4, "order": 2 }, { "id":5, "order": 1 } ] } |
{"checklists":[{"id":17,"order":1},{"id":16,"order":2},{"id":18,"order":3}]} |
|
Create Request with Checklists |
/api/v3/requests |
/api/v3/requests |
{ "request": { "requester": { "id": "5" }, "assets": [], "request_type": null, "impact": null, "status": { "id": "2" }, "impact_details": "", "mode": null, "urgency": null, "level": null, "priority": null, "group": null, "category": null, "technician": null, "subcategory": null, "service_category": null, "item": null, "email_ids_to_notify": [], "subject": "abcd", "description": "", "attachments": [], "resolution": { "content": "" }, "request_template_task_ids": [], "template": { "id": "1" }, "zia_properties": {} } } |
{ "request": { "requester": { "id": "5" }, "assets": [], "request_type": null, "impact": null, "status": { "id": "2" }, "impact_details": "", "mode": null, "urgency": null, "level": null, "priority": null, "group": null, "category": null, "technician": null, "subcategory": null, "service_category": null, "item": null, "email_ids_to_notify": [], "subject": "abcd", "description": "", "attachments": [], "resolution": { "content": "" }, "request_template_task_ids": [], "request_template_checklist_ids": [ { "id": "14" }, { "id": "13" }, { "id": "10" } ], "template": { "id": "1" }, "zia_properties": {} } } |
|
Associate Checklists to Request |
/api/v3/requests/<id>/associate_checklists |
/api/v3/requests/<id>/checklists |
{ "checklists": [ { "id": "1" } ] } |
{ "checklists": [ { "checklist_template": { "id": "10" } }, { "checklist_template": { "id": "13" } }, { "checklist_template": { "id": "14" } } ] } |
|
Get checklists of Request |
/api/v3/requests/<id>/checklists |
/api/v3/requests/<id>/checklists |
|
|
|
Updating Radio Checklistitem |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
{ "module_checklist_item": { "text_value": "a" } } |
{ "checklist_item": { "cl_value": "option4" } } |
|
Updating Boolean Checklistitem |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
{ "module_checklist_item": { "bool_value": true } } |
{ "checklist_item": { "cl_value": "true" } } |
|
Updating Numeric Checklistitem |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
{ "module_checklist_item": { "long_value": 123 } } |
{ "checklist_item": { "cl_value": "10" } } |
|
Updating Single Line Checklist Item |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
/api/v3/requests/<id>/checklists/<id>/checklist_items |
{ "module_checklist_item": { "text_valuevipuser": "abc" } } |
{ "checklist_item": { "cl_value": "sample" } } |
|
Delete ChecklistItem |
/api/v3/requests/<id>/checklists/<id>/checklist_items/<id> |
/api/v3/requests/<id>/checklists/<id>/checklist_items/<id> |
|
|
|
CheckklistItems Bulk Delete |
/api/v3/requests/<id>/checklists/<id>/checklist_items?i<ids> |
/api/v3/requests/<id>/checklists/<id>/checklist_items?<ids> |
|
|
|
Checklist Status Updating |
/api/v3/requests/<id>/checklists/<id> |
/api/v3/requests/<id>/checklists/<id> |
{ "module_checklist": { "status": "Verified" } } |
{ "checklist": { "status": { "name": "Not Verified" } } } |
|
Deleting Checklist |
/api/v3/requests/<id>/checklists/<id> |
/api/v3/requests/<id>/checklists/<id> |
|
|
|
Bulk Deleting Checklists |
/api/v3/requests/<id>/checklists?<ids> |
/api/v3/requests/<id>/checklists?<ids> |
|
|
